Vibratory linear feeders are ideal for laning products, where channeled product feeds are required.

Vibratory Linear Screens Product Information

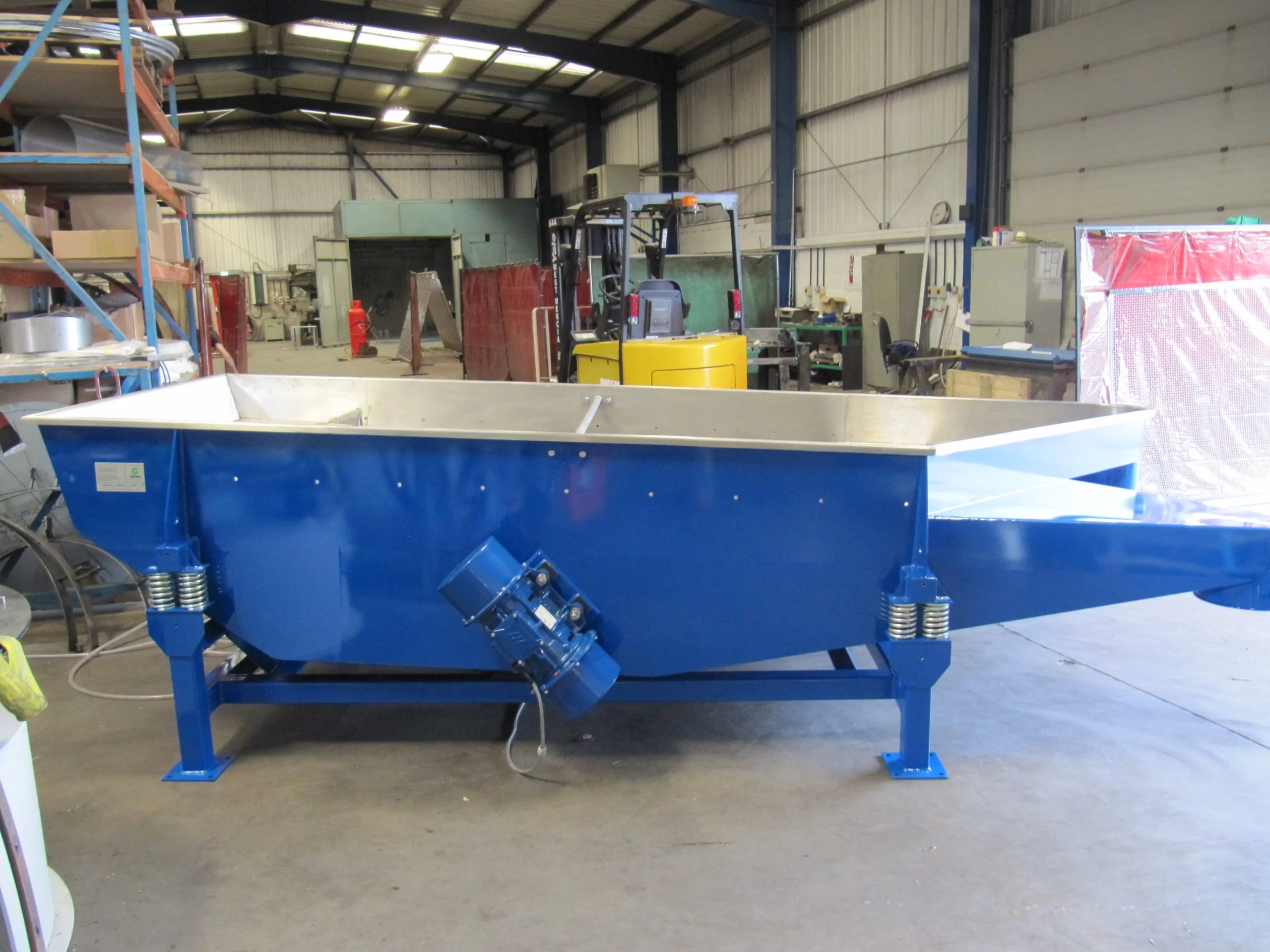

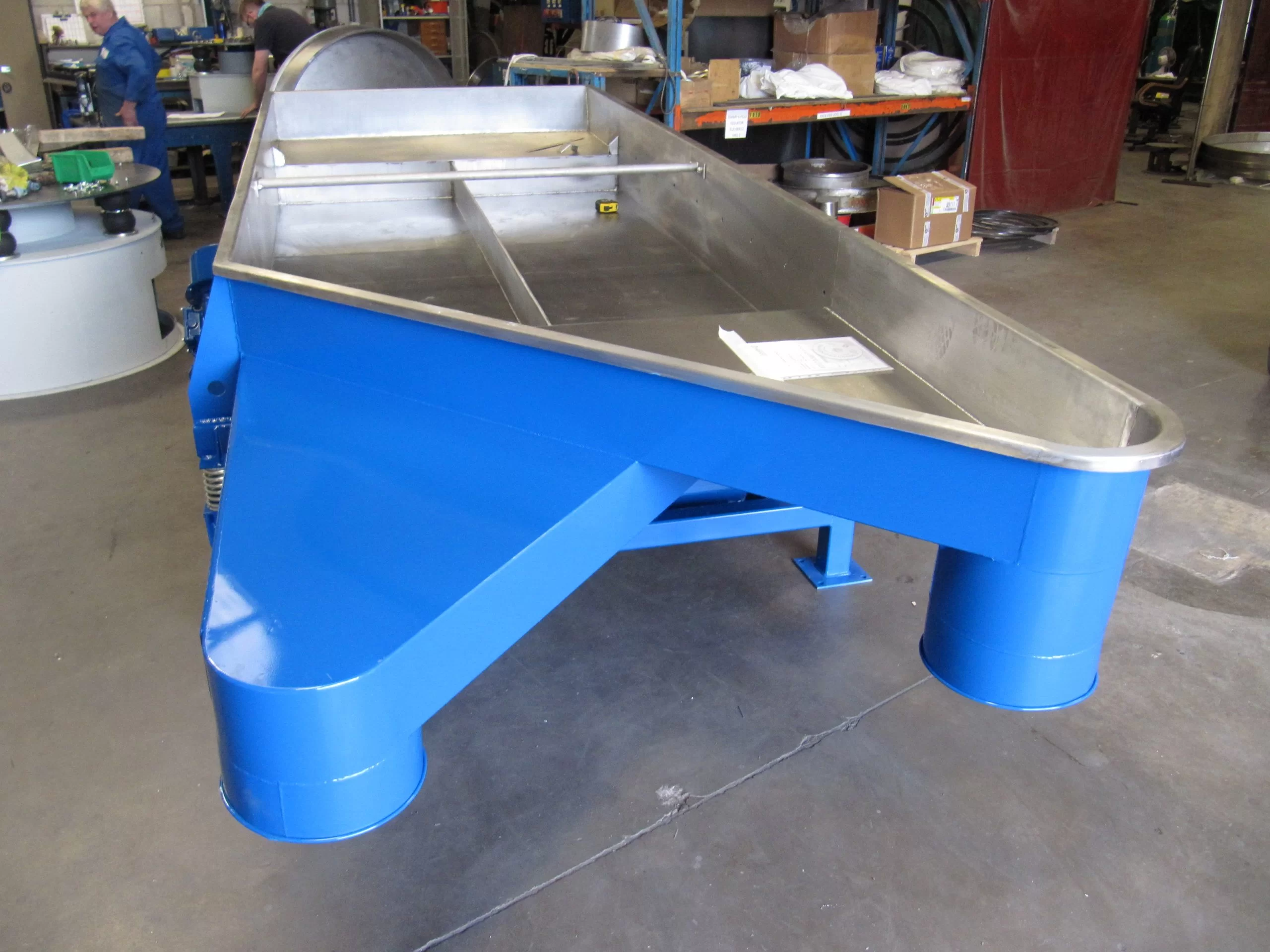

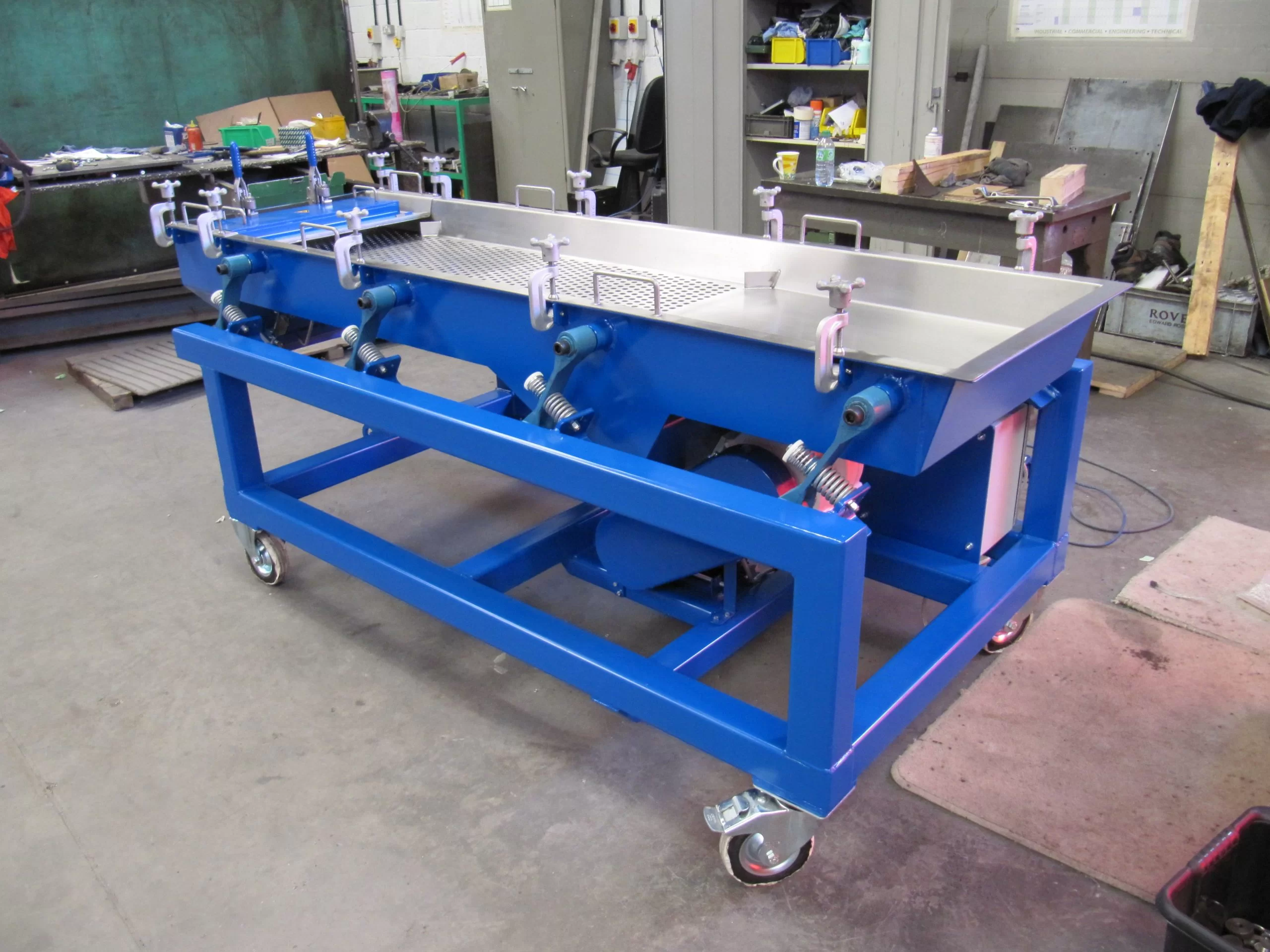

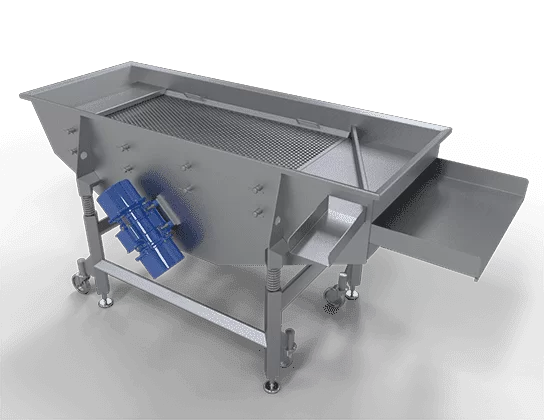

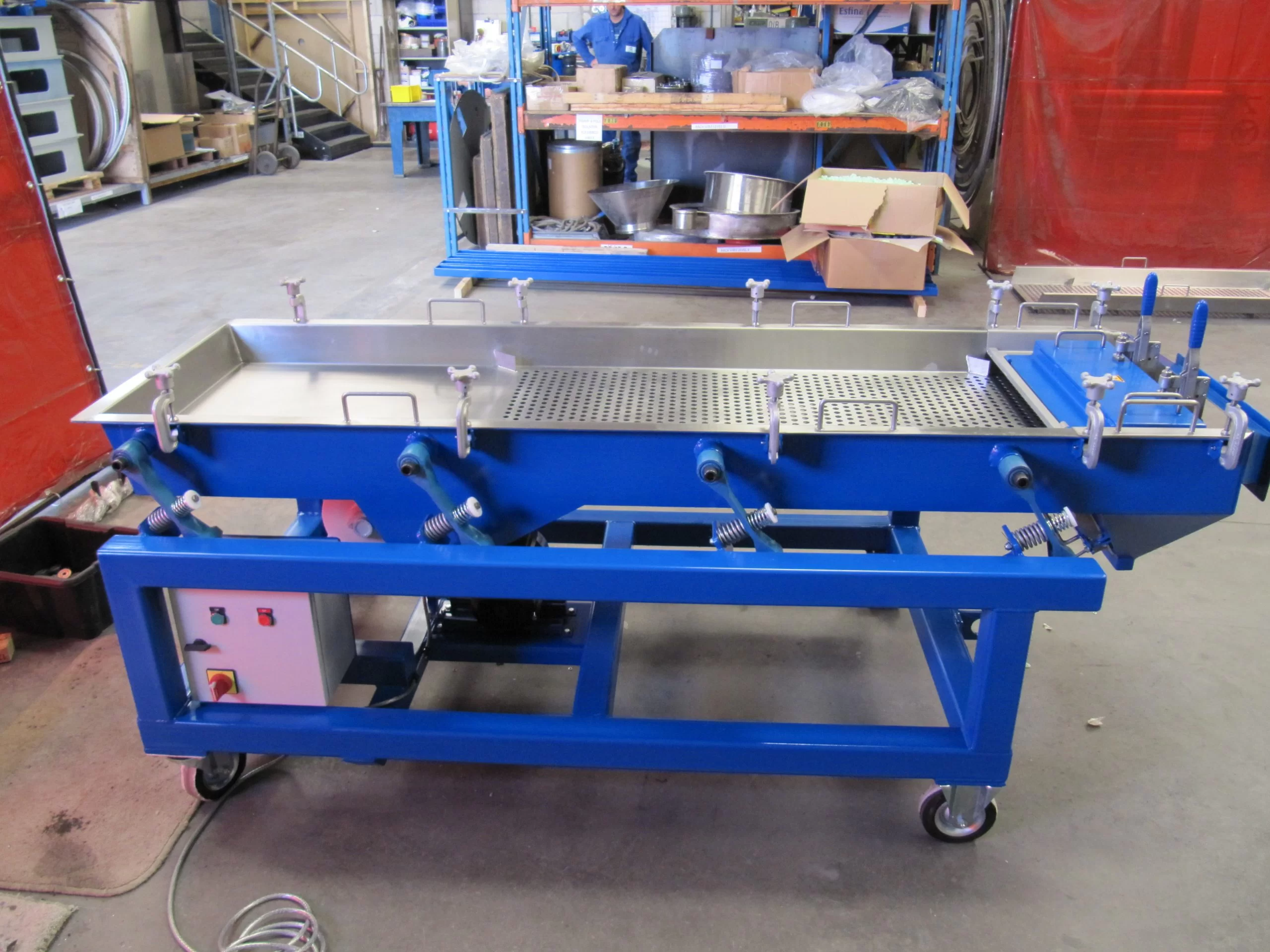

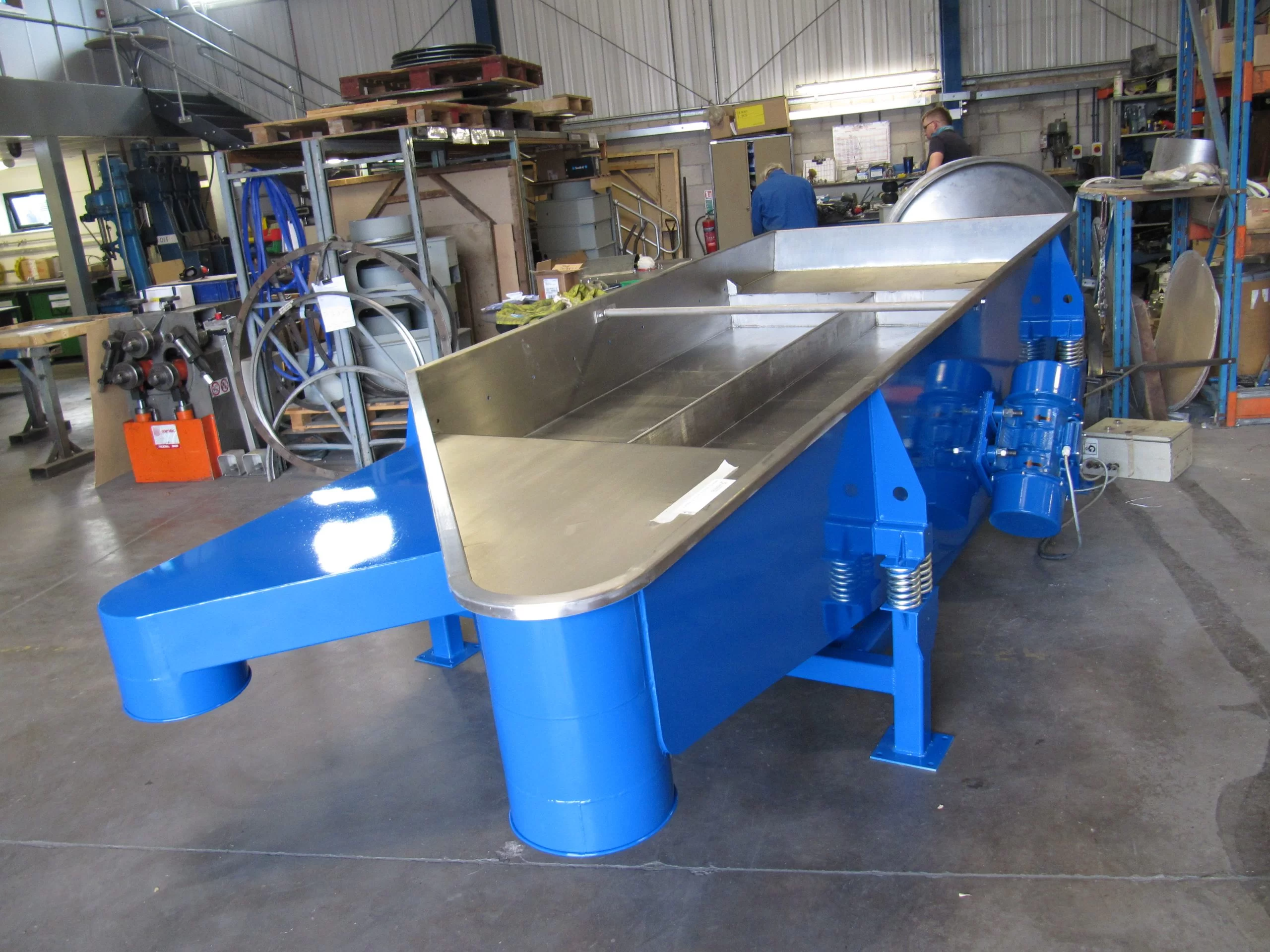

The Gough Linear Vibratory Screening systems offer product screening and feeding in one system, increasing the quality and value of your product through the screening of unwanted contaminants.

Single or multiple screening decks can be included to separate product in to as many fractions as required.

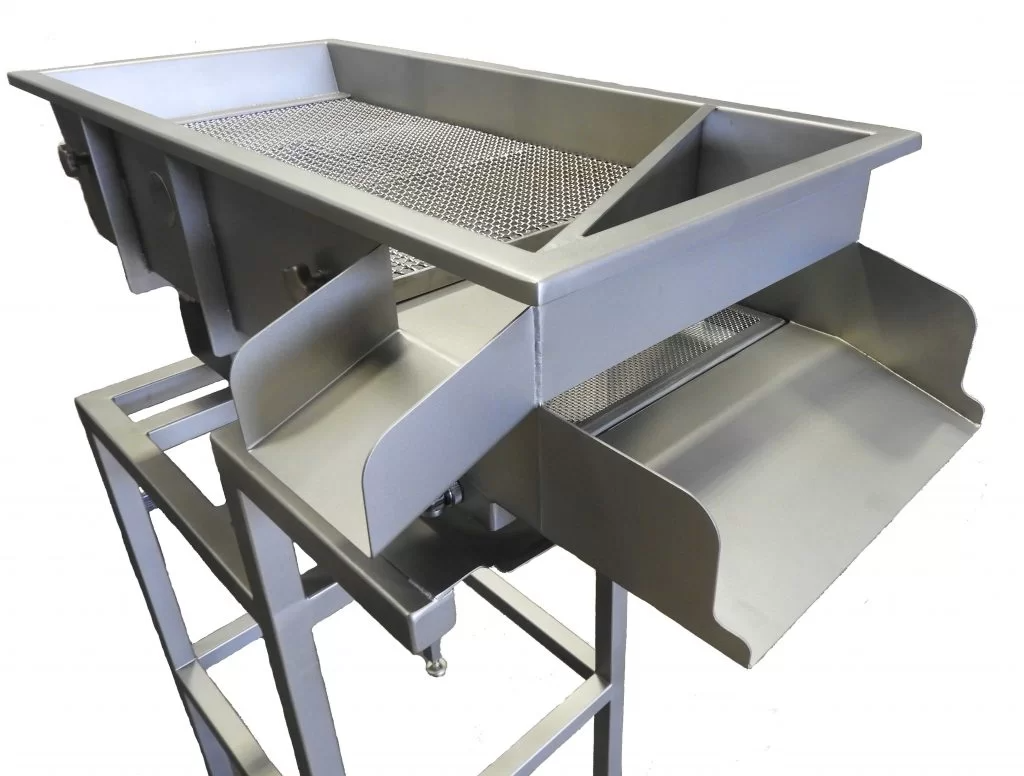

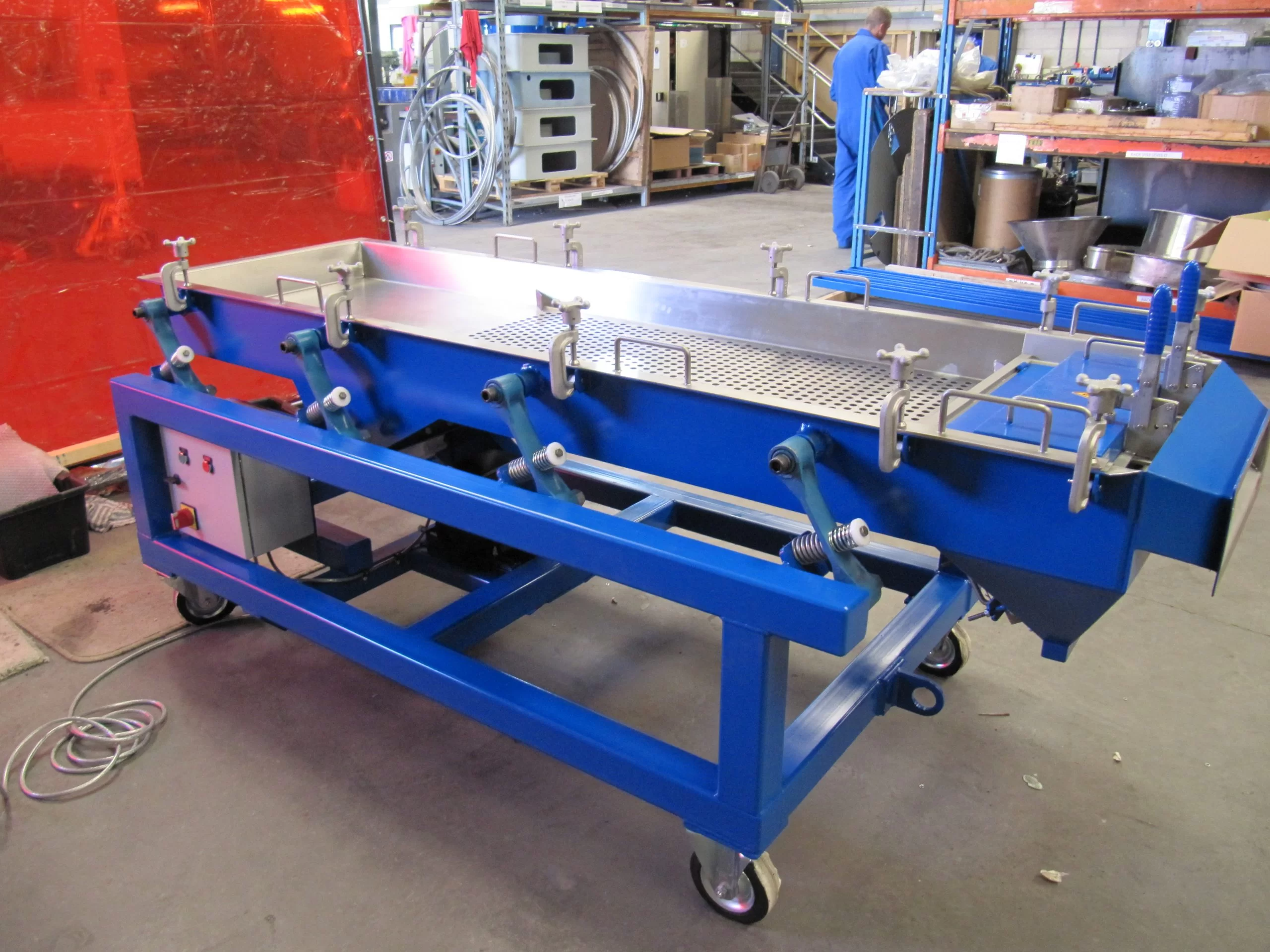

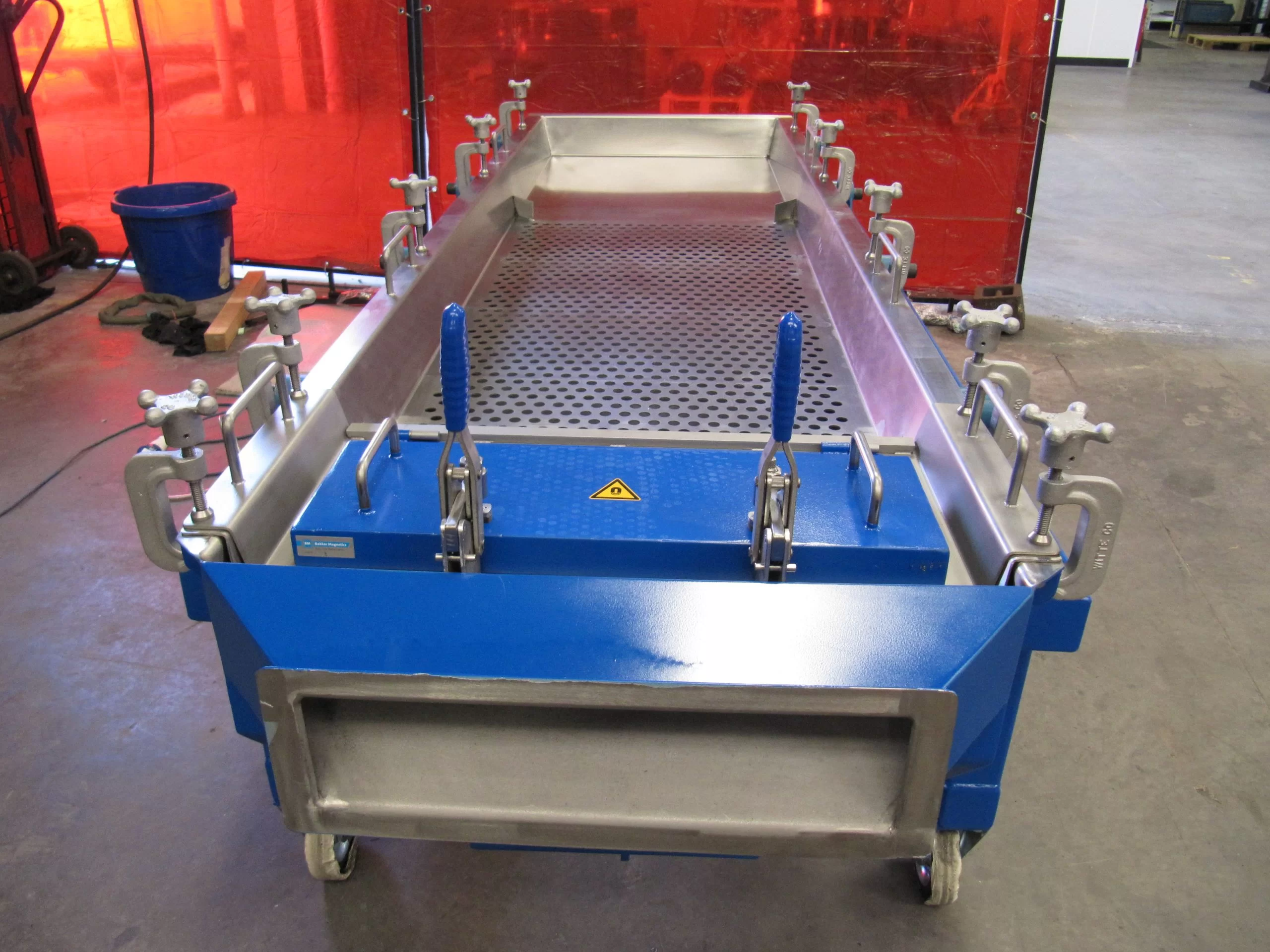

We use a variety of screen types to achieve the required separation, including standard mesh, bar screens, perforated plates and ultrasonic de-blinding systems.

All our linear screening systems are designed to be simple to operate, easy to strip down and reassemble, and require minimal maintenance.

A range of options such as enclosing covers, rigidised pans, flexible connections, and dust extraction systems can be included.

Electromagnetic Drives



Our linear vibrating feeders are powered by enclosed drive units.

Two types of drives are available:

High Frequency

Our standard unit suitable for most applications. This drive operates at 50 Hz and gives a tray amplitude of 1.5mm.

The high frequency and small amplitude offers greater control when stopping and re-starting product flow.

High Deflection

The more specialized high deflection drive operates at a lower frequency of 30 Hz, and a tray amplitude of 4.5mm.

The greater amplitude is able to convey large and loose particles, which may not move on low amplitude systems.
